High-efficiency, ultra-lightweight progress-capture pulley

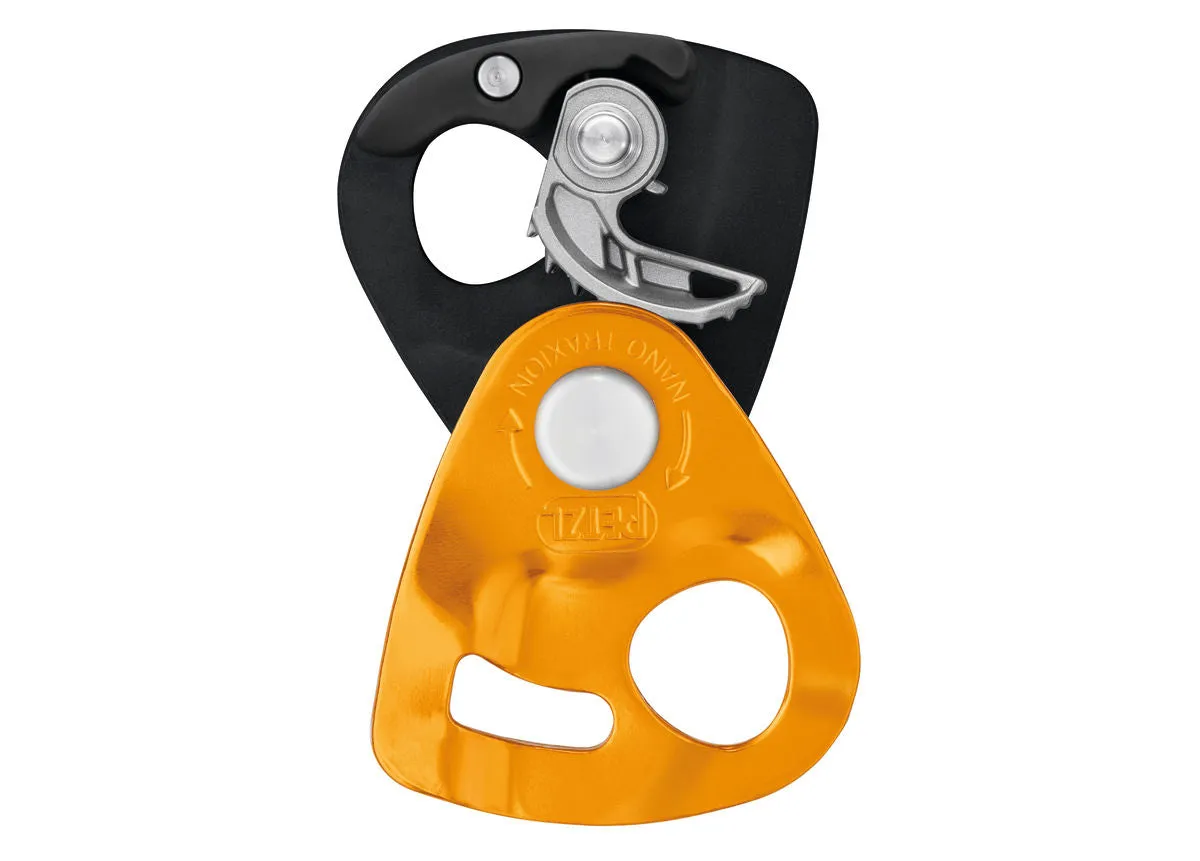

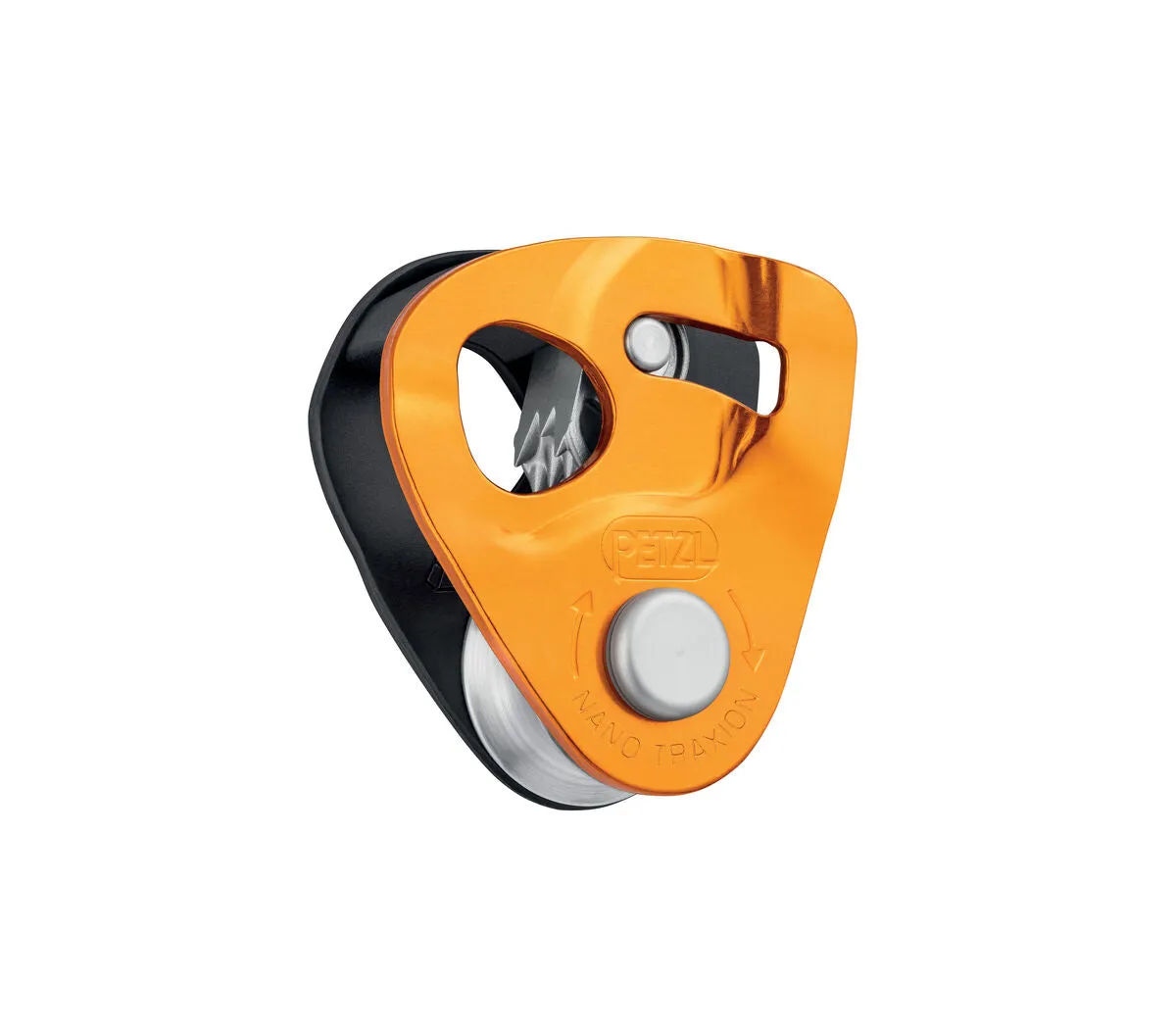

NANO TRAXION is an ultra-lightweight (53 g) and compact progress-capture pulley designed for rescue. Sealed ball bearings provide excellent efficiency (91%).
Description
- Ultra-lightweight and compact:
- Only 53 g
- Very compact

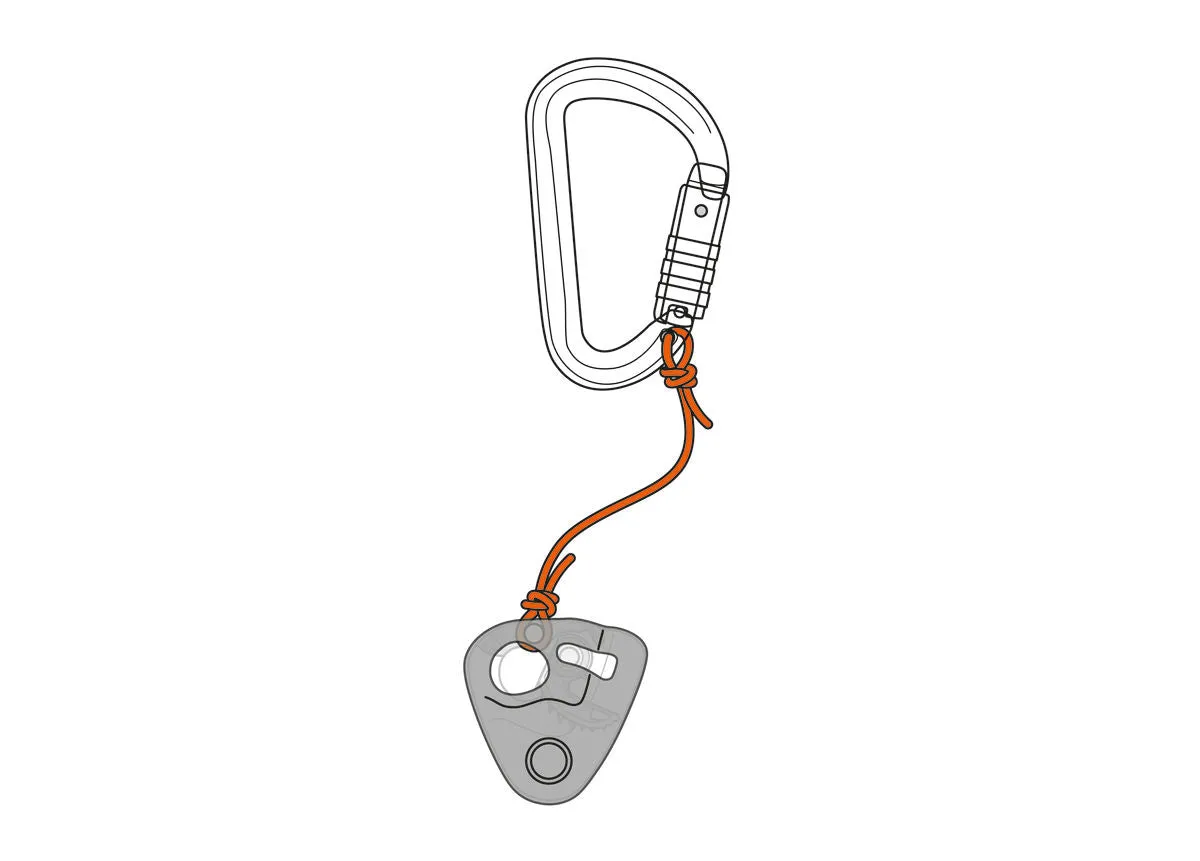

- Hole allows an Sm’D carabiner to be connected to the pulley with a cord, making the device loss-proof
- Designed for rescue
- High efficiency:
- Sealed ball bearings provide excellent efficiency (91 %)
- Works even on frozen or muddy ropes
- For use on 7 to 11 mm diameter ropes
- Rope installation diagrams are engraved inside the pulley
Specifications
- Weight: 53 g
- Certification(s): CE EN 567, UKCA, UIAA
- Min. rope diameter: 7 mm
- Max. rope diameter: 11 mm
- Sheave type: Sealed ball bearings
- Sheave diameter: 18 mm
- Breaking strength: 2 x 7,5 = 15 kN
- Breaking strength as progress capture pulley: 4 kN
- Efficiency: 91 %
- Also compatible with a 6 mm cord only for hauling a pack
