In the box：

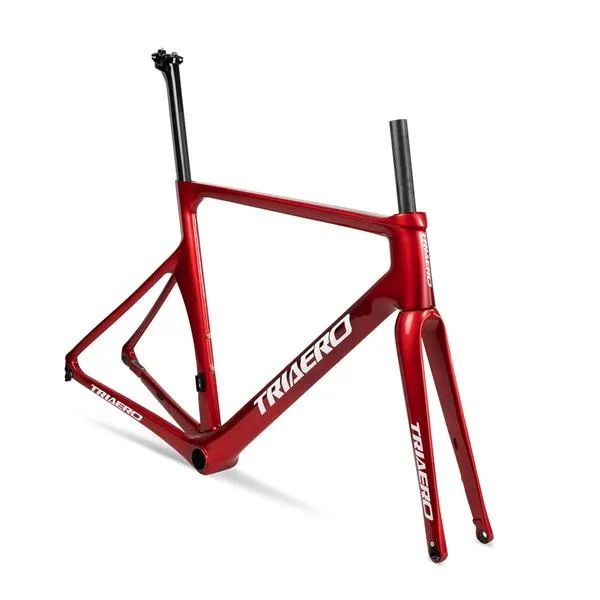

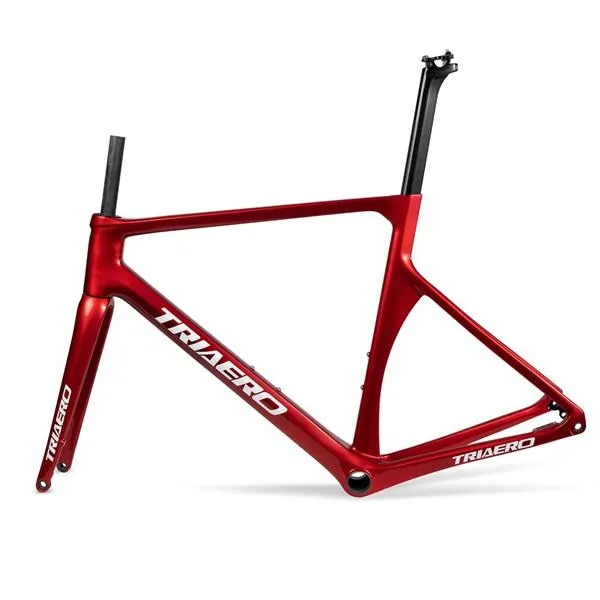

Frame；Seat Post；Fork；Front/Rear Thru-axle.

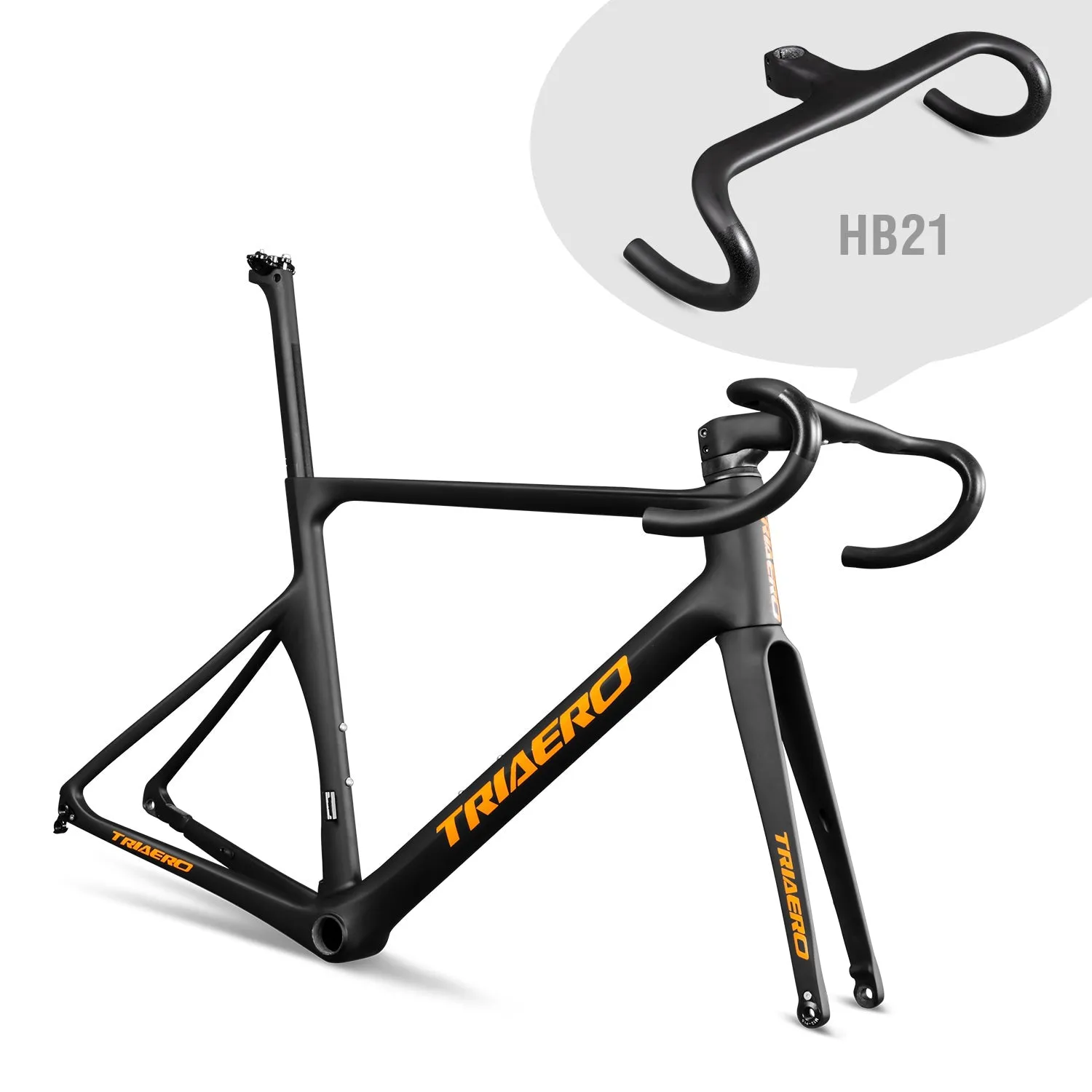

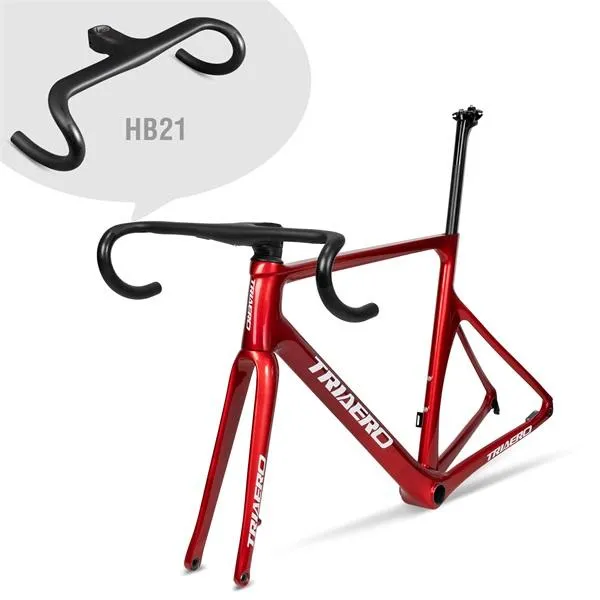

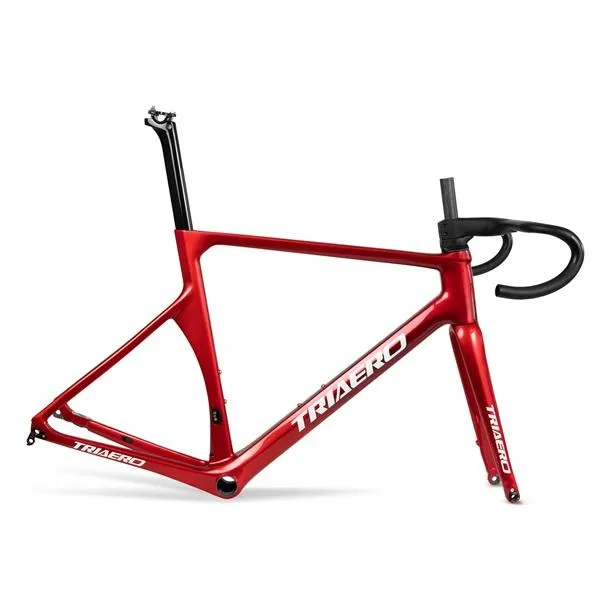

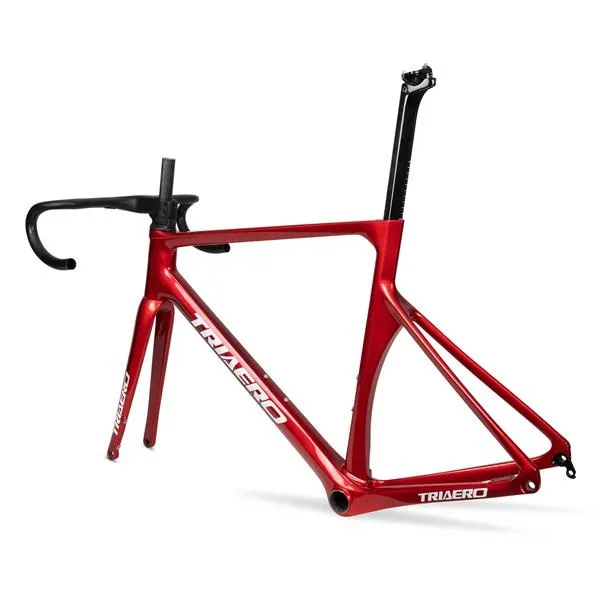

Handlebar with Headsets, 10mm spacer, 30mm spacer ( if you don't need the handlebar, )
Seat post： 182g
Fork： 390g
Specification

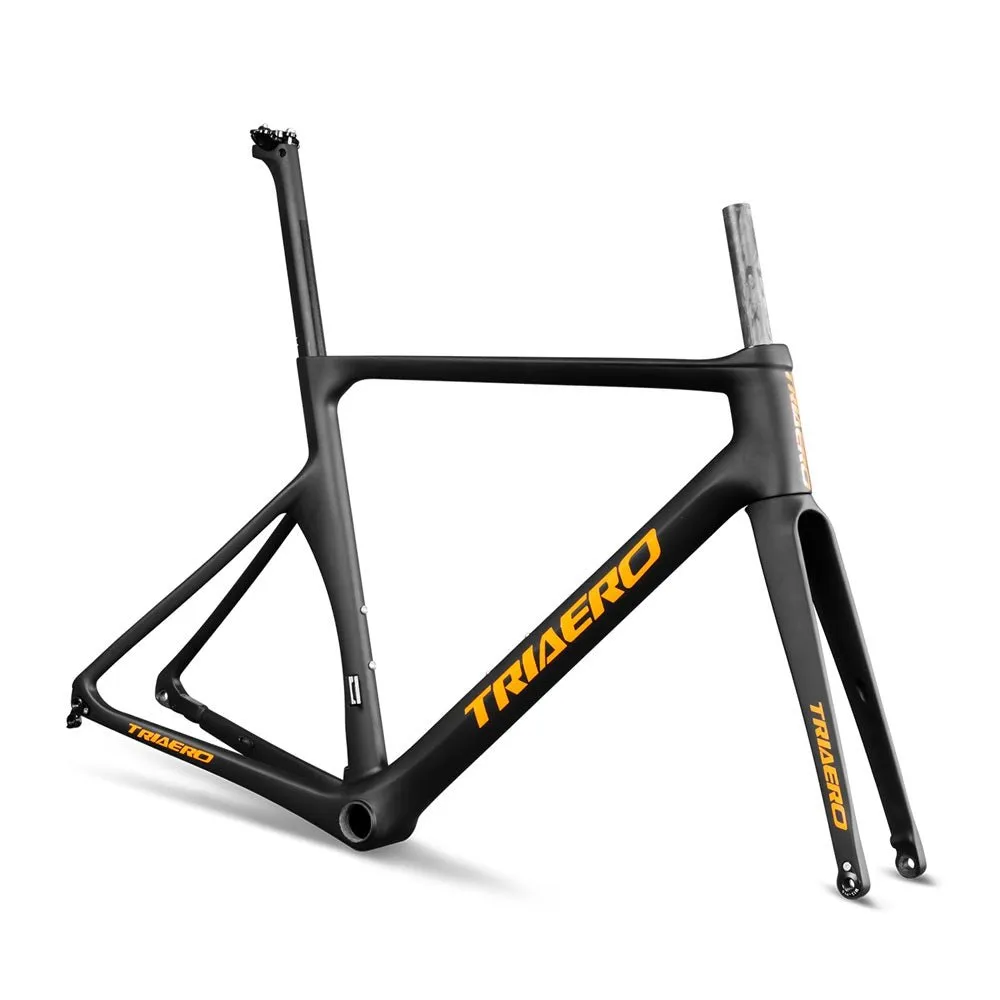

| Type | New Aero Carbon Road Disc Brake Frame |
| Material | Carbon fiber |
| Size | 45/48/51/54/57cm |

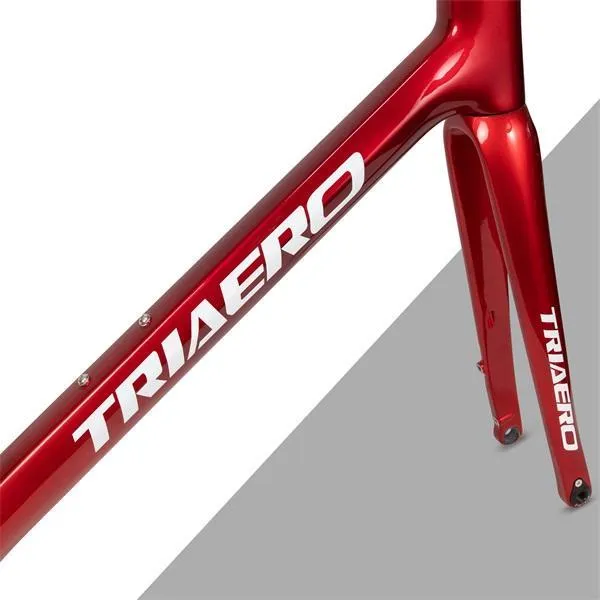

| Fork | AO22 specify carbon fork |
| Handlebar width & Stem | 400*90mm/420*110mm |
| Headtube | Straight 1 1/2" head tube |
| Weight | 45cm 1058g 48cm 1070g 51cm 1092g 54cm 1115g 57cm 1248g |
| Seatpost | Adjustable Seatpost |

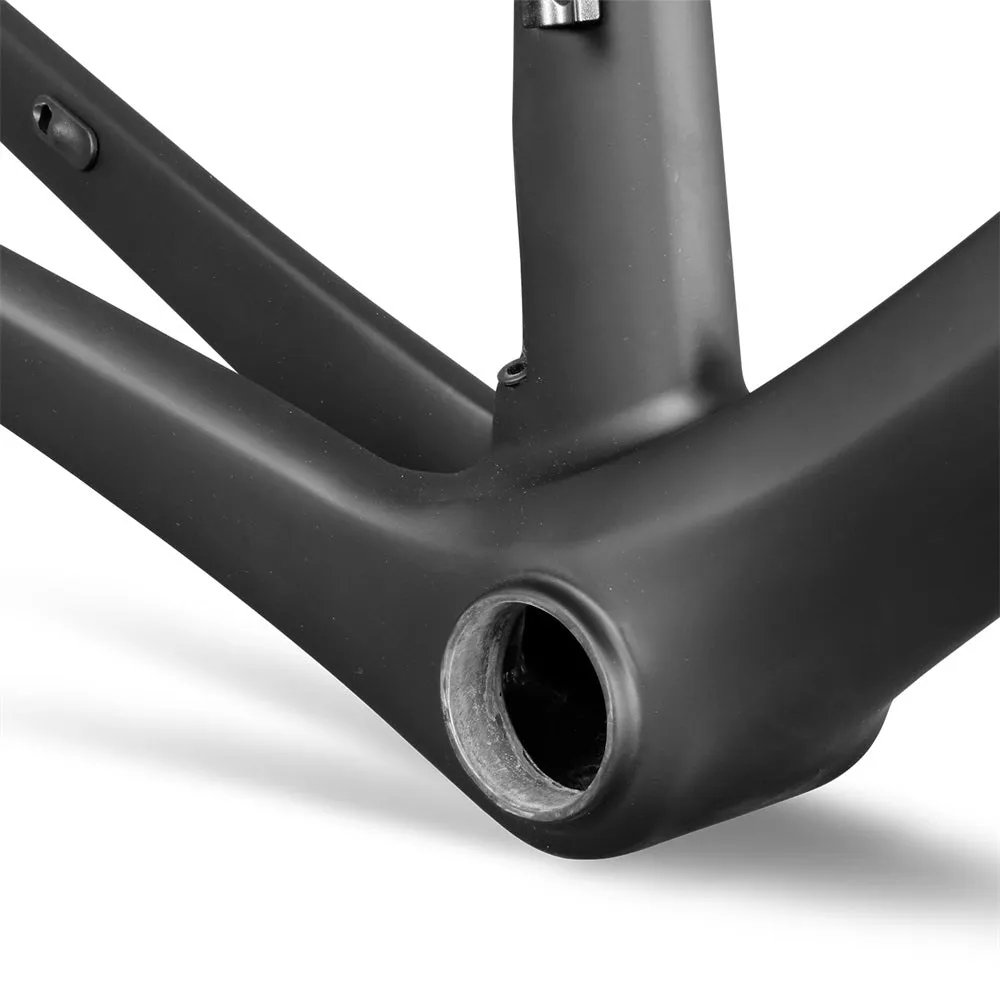

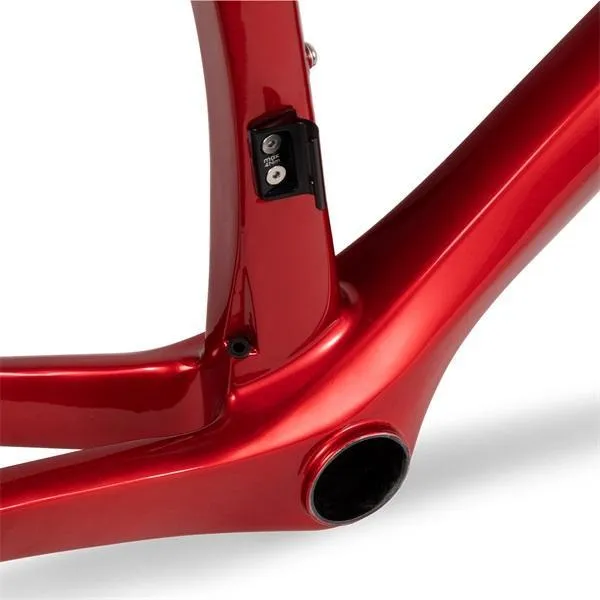

| Bottom bracket | BB86 |
| Max tire clearance | 700*25c 700x28c（maxxis tire can be supported） |
| Brake mount type | Flat mount Disc brake 140mm |

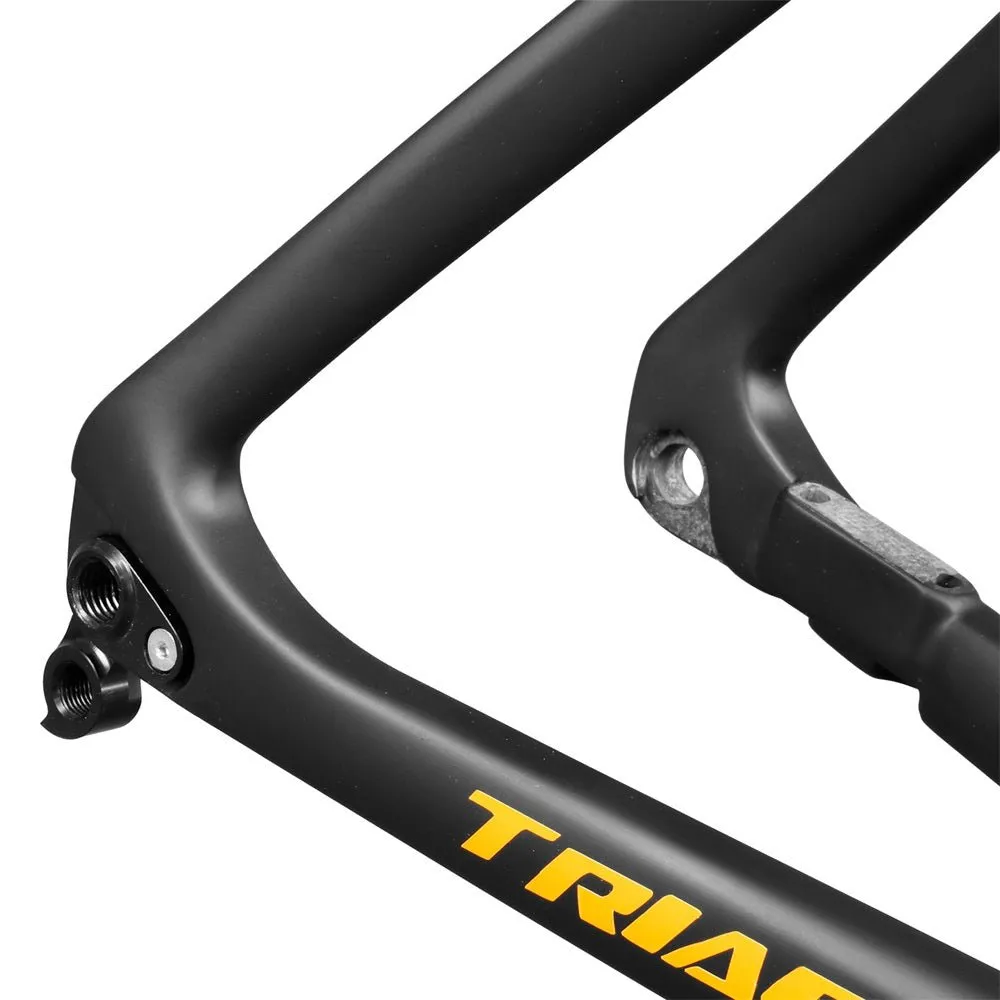

| Dropout | Front 12*100mm thru-axle Rear 12*142mm thru-axle |
| Groupset | Recommended install electronic shifting groupset |
| Handlebar&stem | Compatible with ICAN handlebar HBA22 |
Test Standard | ISO4210 |
Why you choose AERO Road Frame A22
1. Advanced aerodynamics
We all know aerodynamic drag is the biggest resistance in cycling. Our design focus on aerodynamics. All we do is make your ride faster.
2.A balanced geometry, flexible frame size option
AERO Road Frame A22 has a variety of sizes to choose from, try to meet the needs of more customers.
5 frame sizes for riders 150cm -190 cm.Our AERO Road Frame A22 is also suitable for female cyclists.

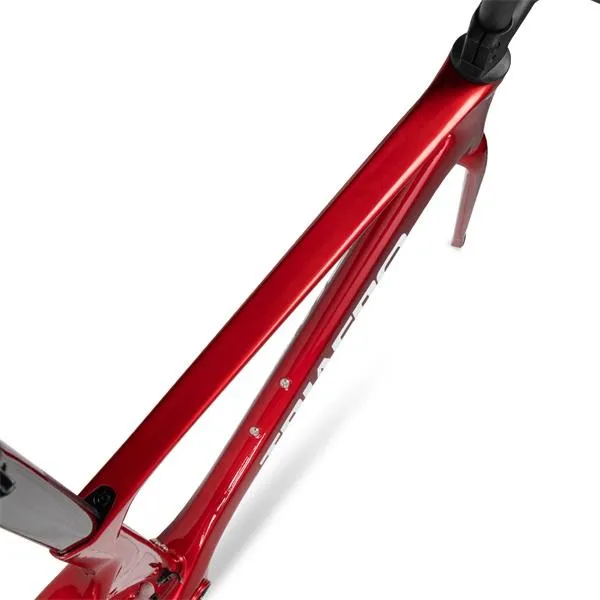

3.Fully-internal routing
In order to improve aerodynamics and make a cleaner line design, we use fully internal routing.
Not only let you ride faster, but also makes the bike more beautiful.
4.Compact and beautiful design
There are compact and beautiful designs for the frame. We don't spend more energy on non-practical functions.
We just make an aerodynamics frame suitable for more riders. We paint with coordinated colors to make the whole frame more beautiful and special
5.Light frame
The weight of the entire frame is kept within a reasonable range, and the weight is only 1058g to make your bike ride faster and improved aerodynamics. All materials are used in the right place, there is no waste.
Compare with Aeroad CF SLX 8
Our Frame：1058 g
Canyon Frame Weight: 980 g

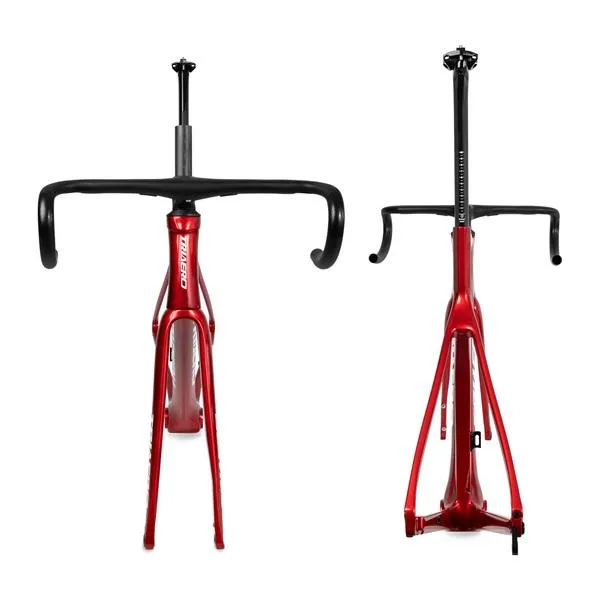

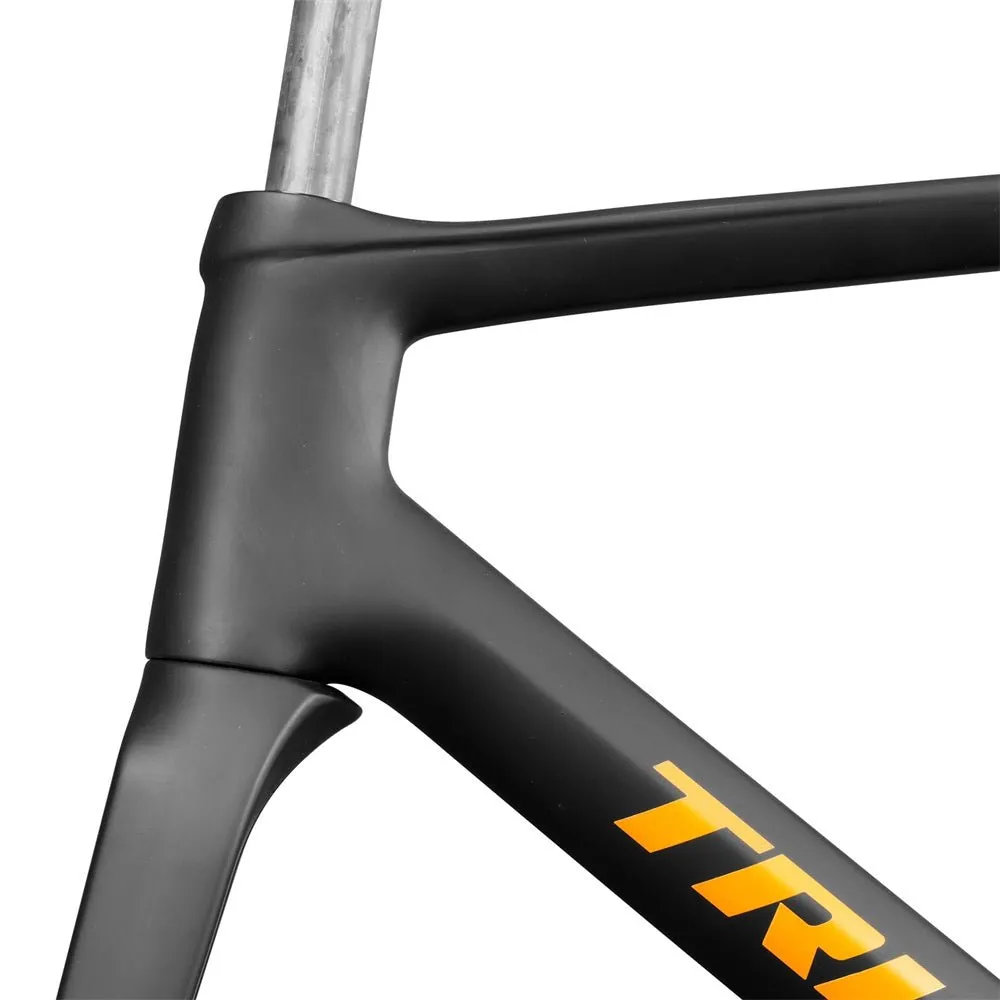

6.Adjustable seat post, perfect structure
According to your needs, you can adjust the seat post height easily and quickly to make it more comfortable.
What is more, ，the seat post gets a really broad profile to make it more aerodynamic.
7.two-year warranty
You will don't worry about the quality. We have a complete quality assurance system to support better ride
8. Support electronic shifting groupset
Our frame supports mainstream groupset: Shimano R8070; Sram Force AXS.

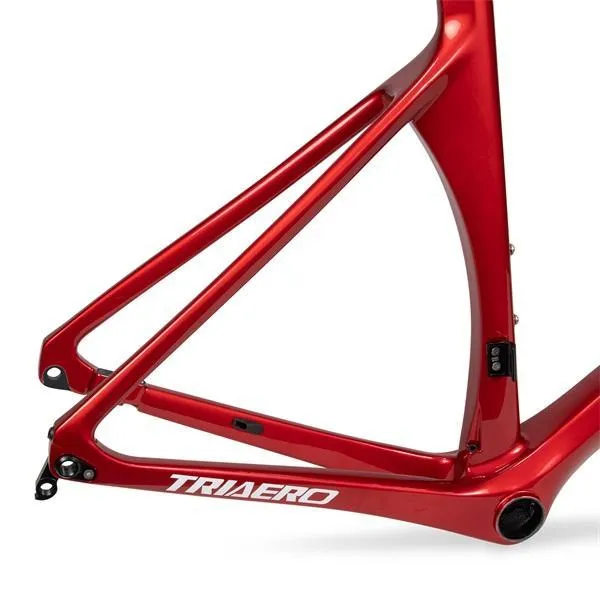

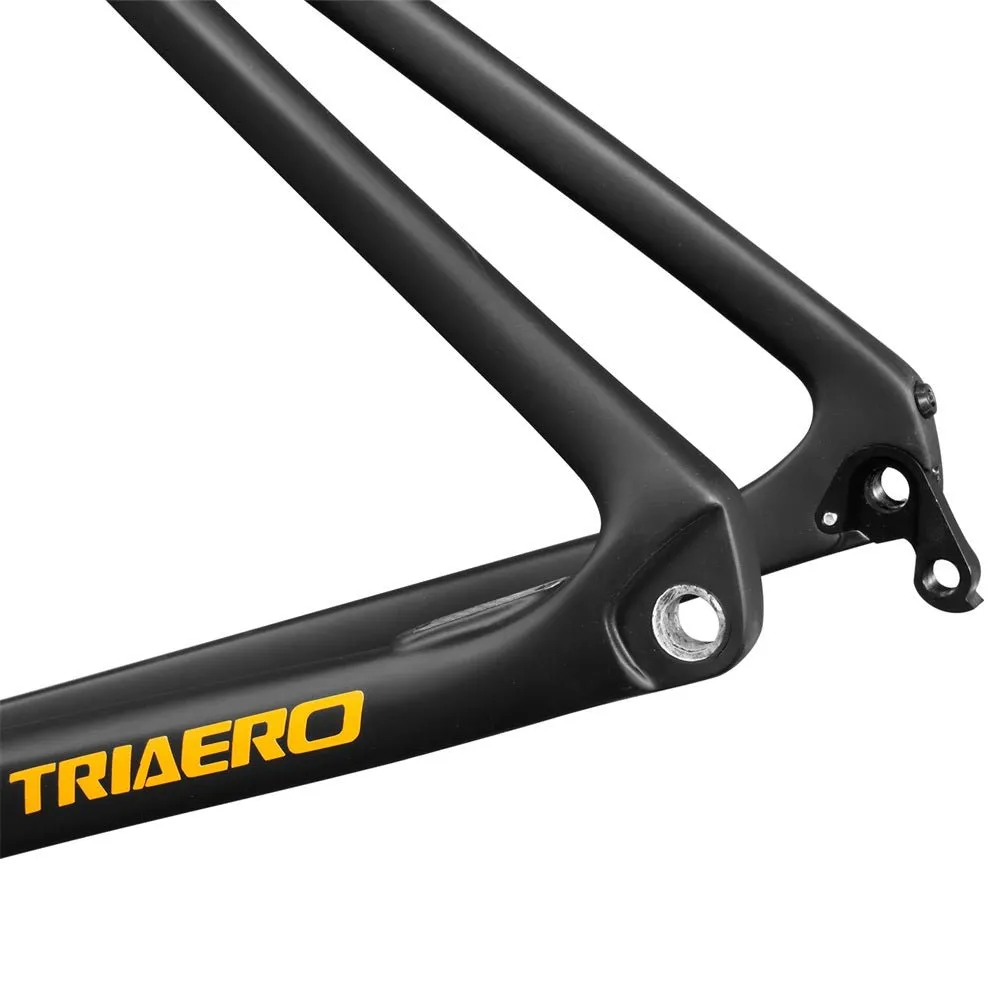

9.Shorter chainstay length
On the premise of perfect function, we shortened the chainstay length, which means allow you to maintain the bike well. It is really short tight back end perfect to make the geometry of the disc bike the same as the rim brake.
You may ask
I want to know how safe they actually are and if they are okay to take on a heavier rider?
Generally speaking, the weight of the frame can reach 120kg, there is no problem when you follow the standard riding method.
Noted：The load-bearing limit of each bike frame will have a little difference.

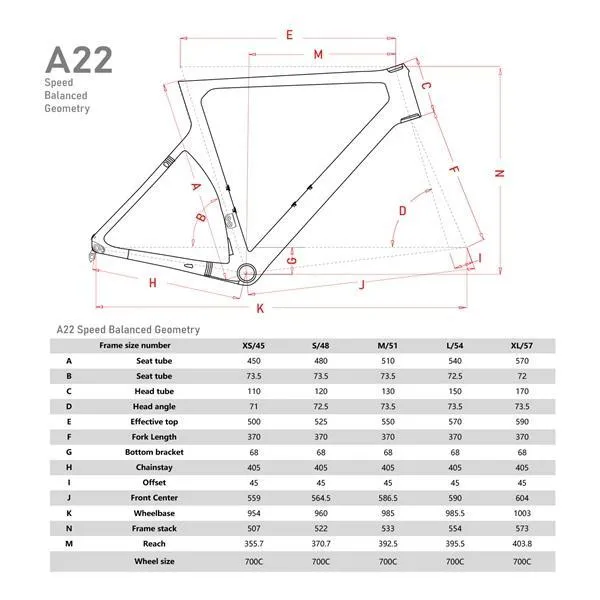

A22 Frame Geometry
Recommended size chart：
